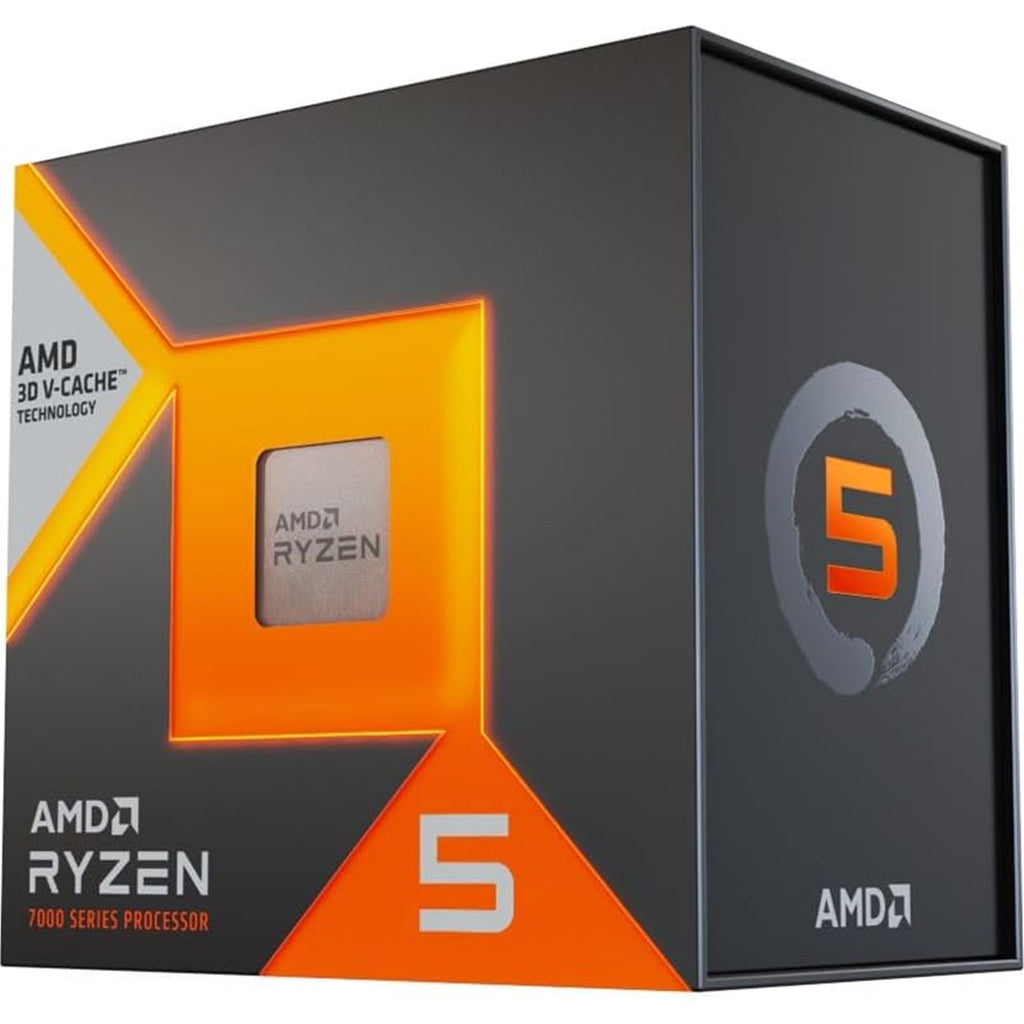

AMD Ryzen 5 7500X3D Desktop Processor
General Specifications
Name
AMD Ryzen 5 7500X3D
Family
Ryzen
Series
Ryzen 7000 Series
Form Factor
Desktops, Boxed Processor
Market Segment
Enthusiast Desktop
AMD PRO Technologies
No
Regional Availability
NA , EMEA
Former Codename
Raphael AM5
Processor Architecture
Zen 4
# of CPU Cores
6
Multithreading (SMT)
Yes
# of Threads
12
Max. Boost Clock
Up to 4.5 GHz
4 GHz
L1 Cache
384 KB
L2 Cache
6 MB
3 Cache
96 MB
Default TDP
65W
Processor Technology for CPU Cores
TSMC 5nm FinFET
Processor Technology for I/O Die
TSMC 6nm FinFET
CPU Compute Die (CCD) Size
71mm²
I/O Die (IOD) Size
122mm²
Package Die Count
2
AMD EXPO Memory Overclocking Technology
Yes
Precision Boost Overdrive
Yes
Yes
Yes
CPU Socket
AM5
Supporting Chipsets
A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology
Precision Boost 2
Instruction Set
x86-64
Supported Extensions
AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB)
Not Included
Recommended Cooler
Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax)
89C
*OS Support
Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Connectivity
Native USB 3.2 Gen 2 (10Gbps)
4
Native USB 3.2 Gen 1 (5Gbps)
0
Native USB 2.0 (480Mbps)
1
PCI Express Version
PCIe 5.0
Native PCIe Lanes (Total/Usable)
28 , 24
NVMe Support
Boot , RAID0 , RAID1 , RAID10
System Memory Type
DDR5
Memory Channels
2
Max. Memory
128 GB
System Memory Subtype
UDIMM
Max Memory Speed
2x1R DDR5-5200
2x2R DDR5-5200
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support
Yes (Requires mobo support)
Graphics Capabilities
Graphics Model
AMD Radeon Graphics
Graphics Core Count
2
Graphics Frequency
2200 MHz
USB Type-C DisplayPort Alternate Mode
Yes
Key Features
Supported Technologies
AMD EXPO Technology , AMD Ryzen Technologies
